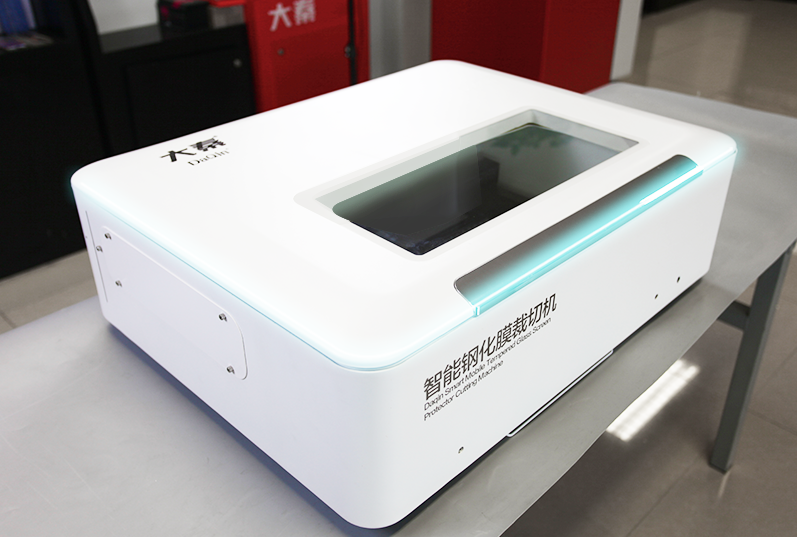

Beauty in appearance, strength in internal skill!

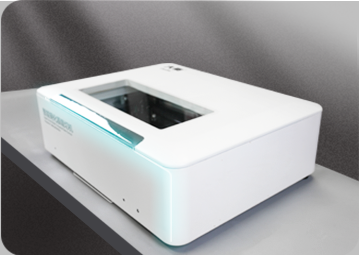

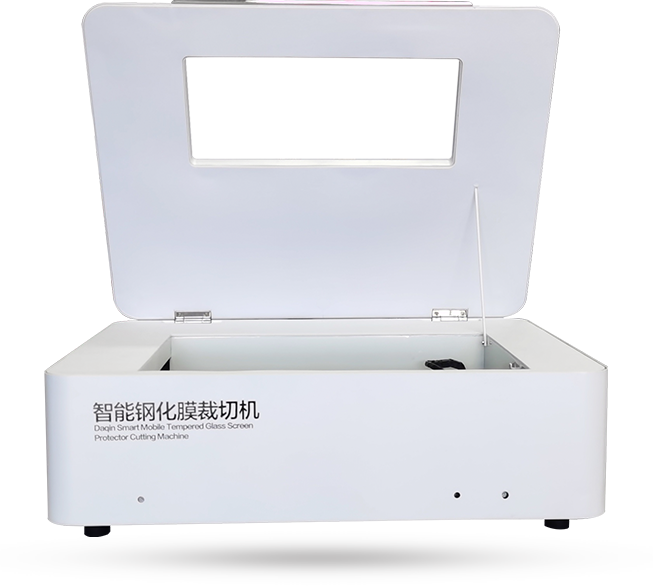

Streamlined fuselage, Elegant and beautiful

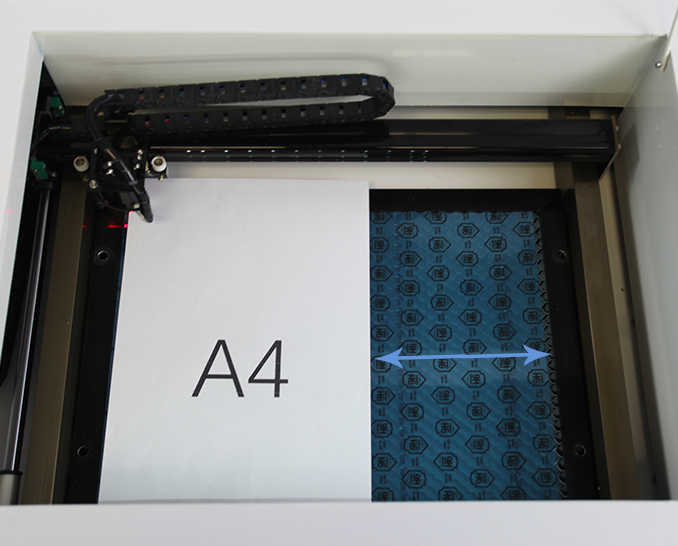

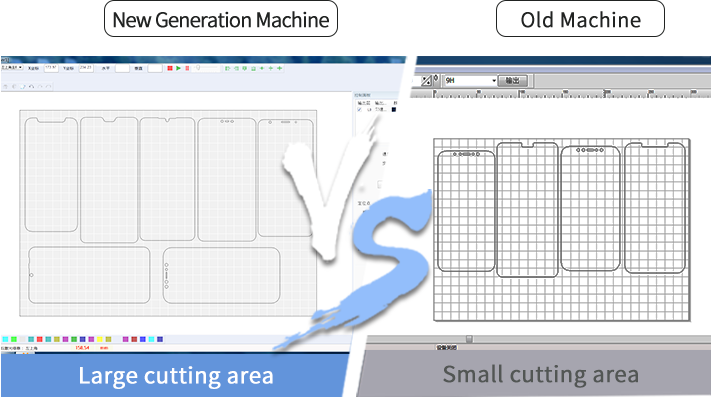

the maximum cutting area is 250mmx360mm even can cut large laptop screen protector

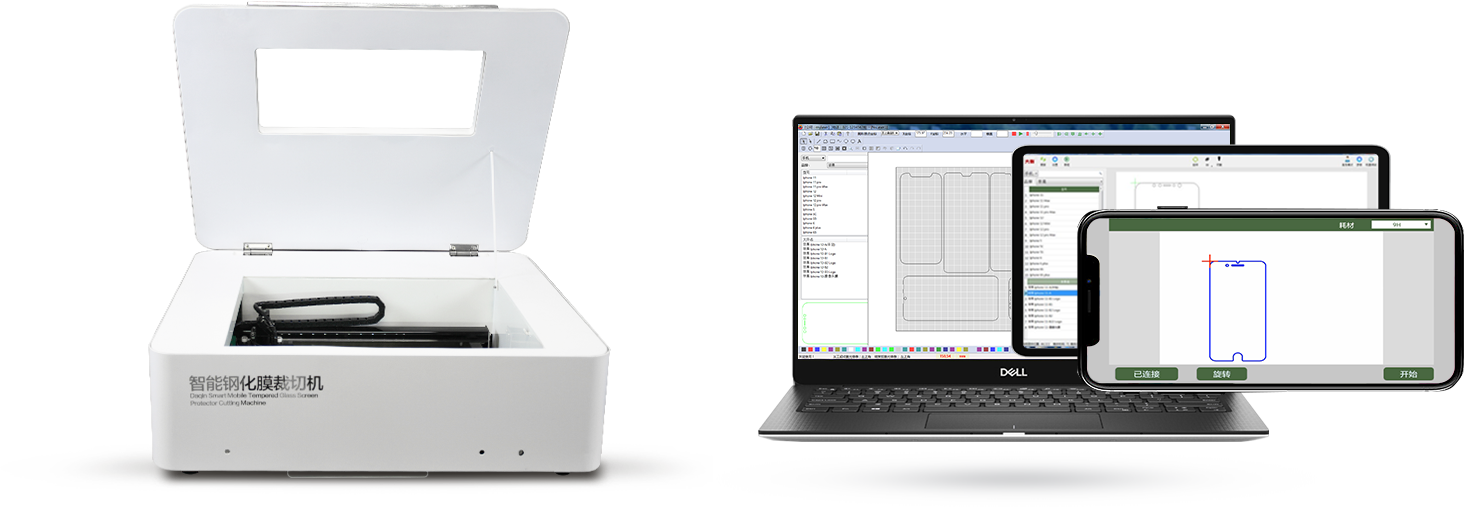

It can be controlled by mobile phone, tablet、laptop and computer

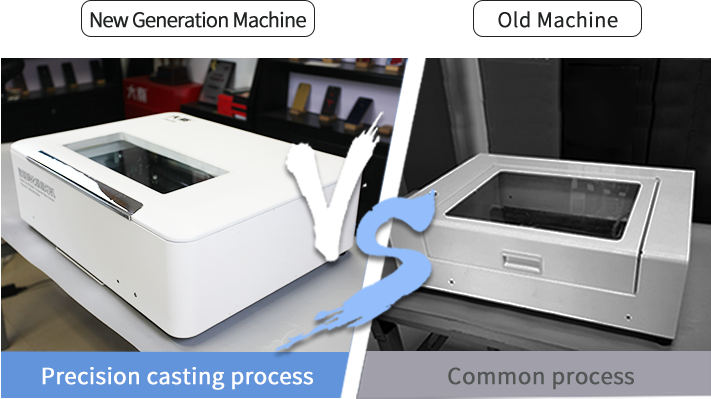

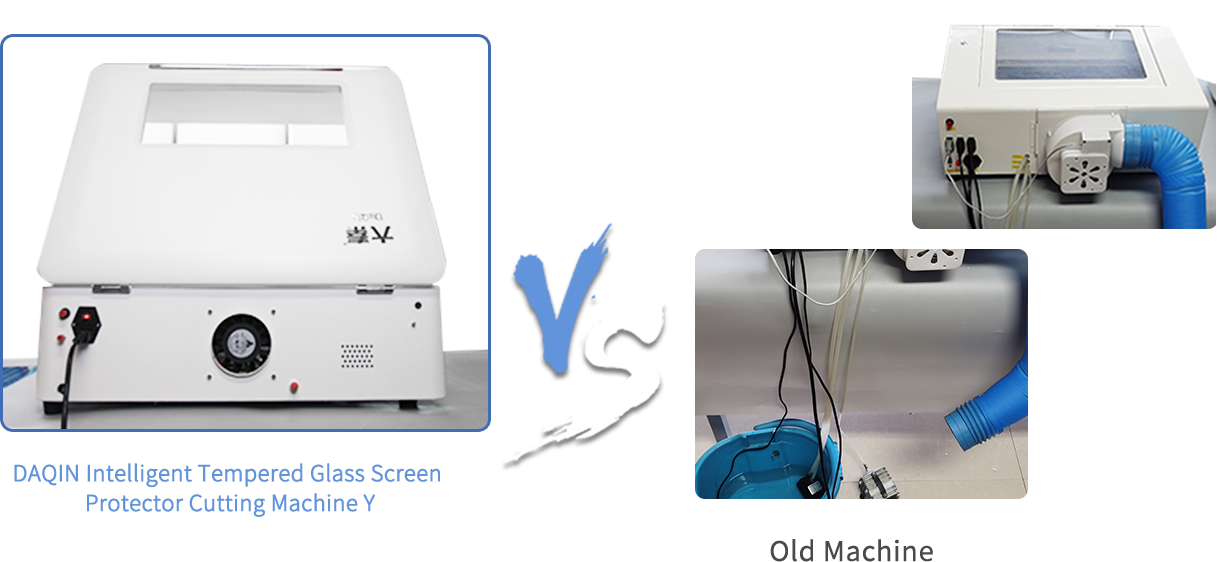

The New Generation of Laser Cutting Machine will be air pumpwater pump, exhaust fan all built-inPut it in store more neat and saves space

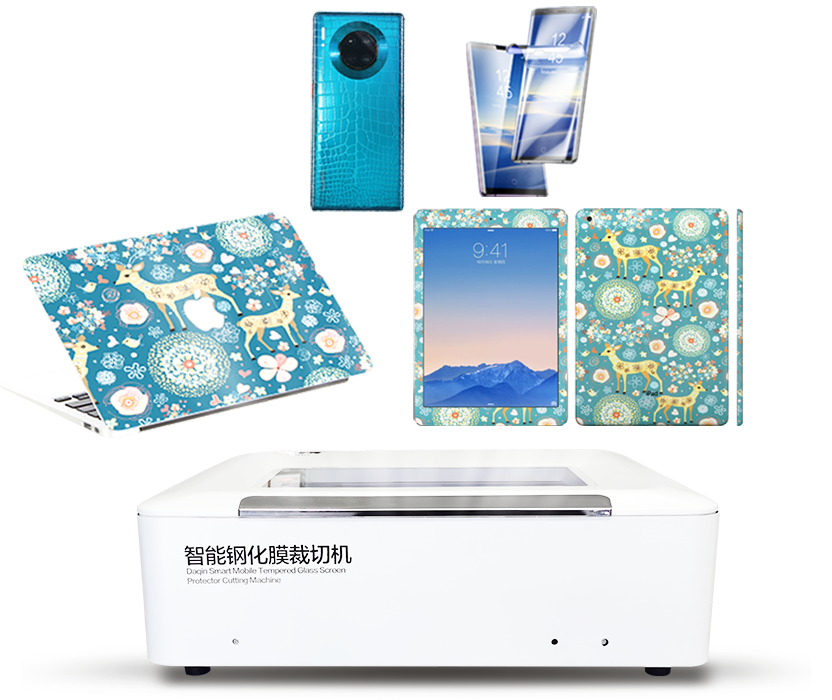

Cutting mobile screen protector tablet and laptop screen protector, back skin and so on

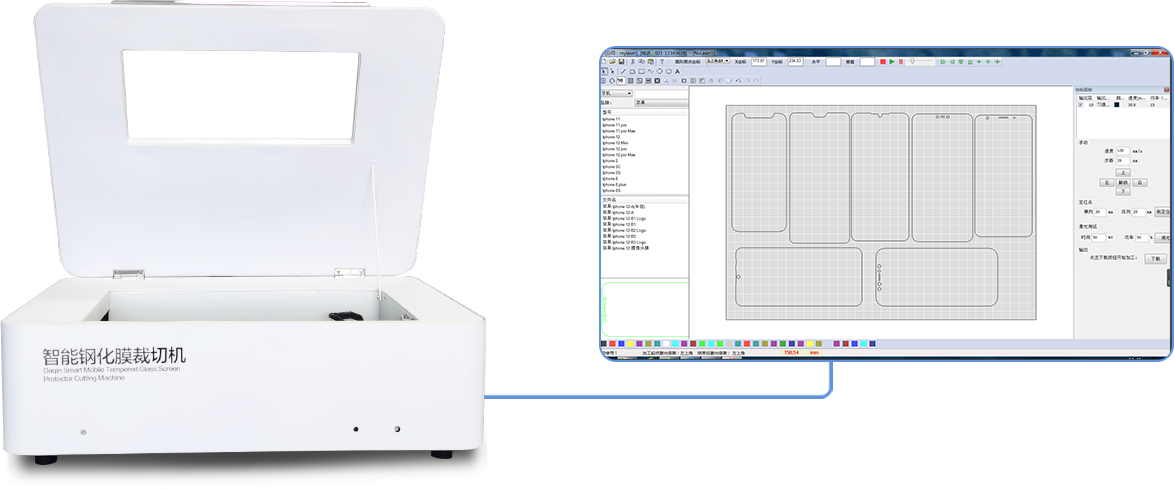

Support multiple templates cutting at the same time make
cutting more efficient You can edit your own templates

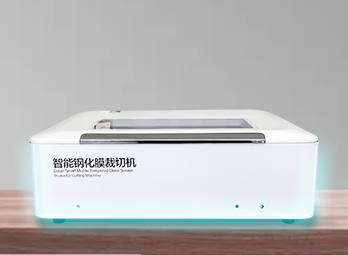

DAQIN Intelligent Tempered Glass Screen Protector Cutting Machine Y

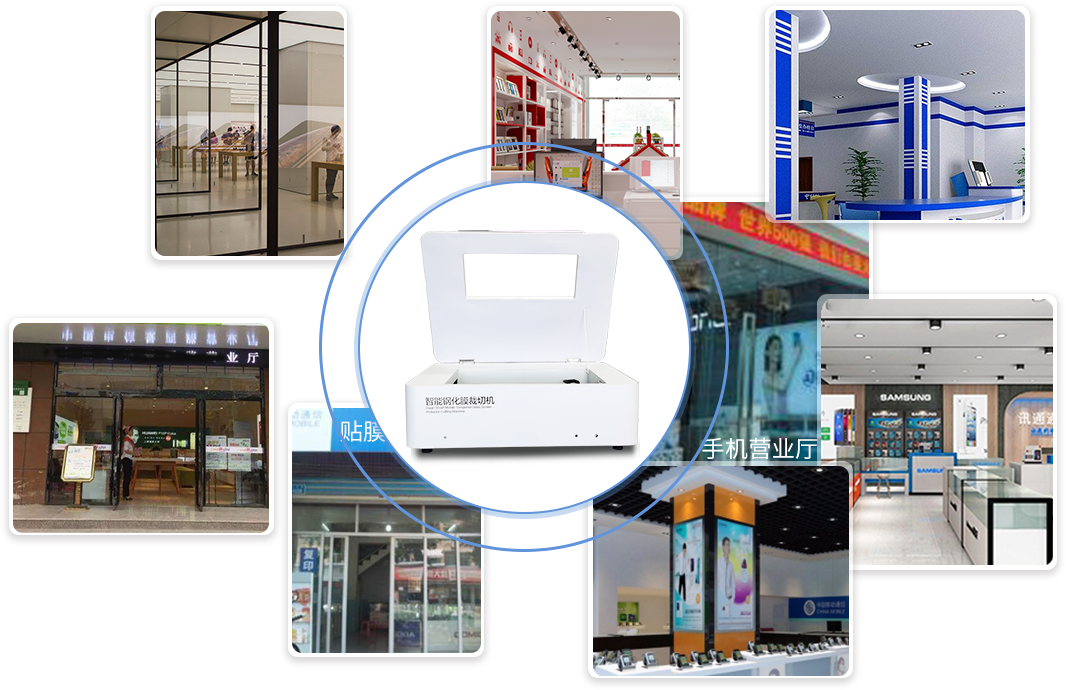

Entering brand mobile phone stores, mobile accessory store, shopping mall, etc.
Machine Parameters
Laser type
CO2 (Carbon dioxide glass laser tube）
laser power
20W
Laser power supply
40W
Air pump (built in)
DC12V
Water pump (built in)
DC24V
Exhaust fan (built in)
DC12V1.74A
Radiator
DC12V 0.2A
LED lighting
DC12V
Cooling mode
Circulating water cooling
Smoke exhaust mode
Rear exhaust
Driving mode
0.9°Stepper motor
Transmission interface
USB cable
Cutting accuracy
±0.01mm
Cutting speed
＜50mm/s
Working environment temperature
5～45℃
supply voltage
220V 50HZ
Maximum cutting area
360x250mm
Machine dimensions
710x570x235mm
Overall weight
27KG
Total power
600W

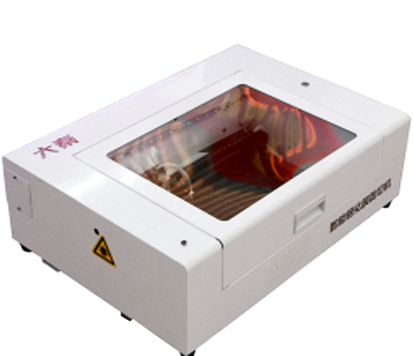

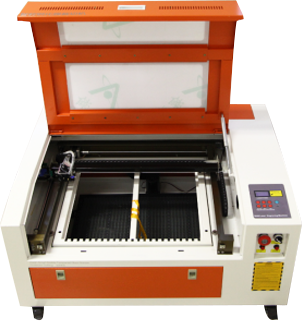

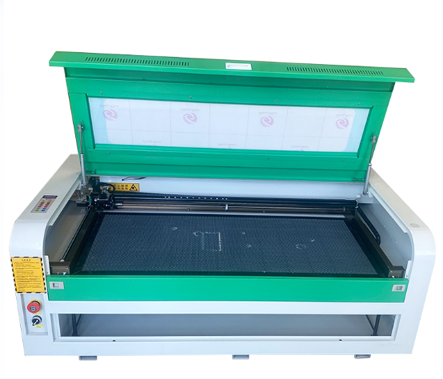

More Models of DAQIN Machine
